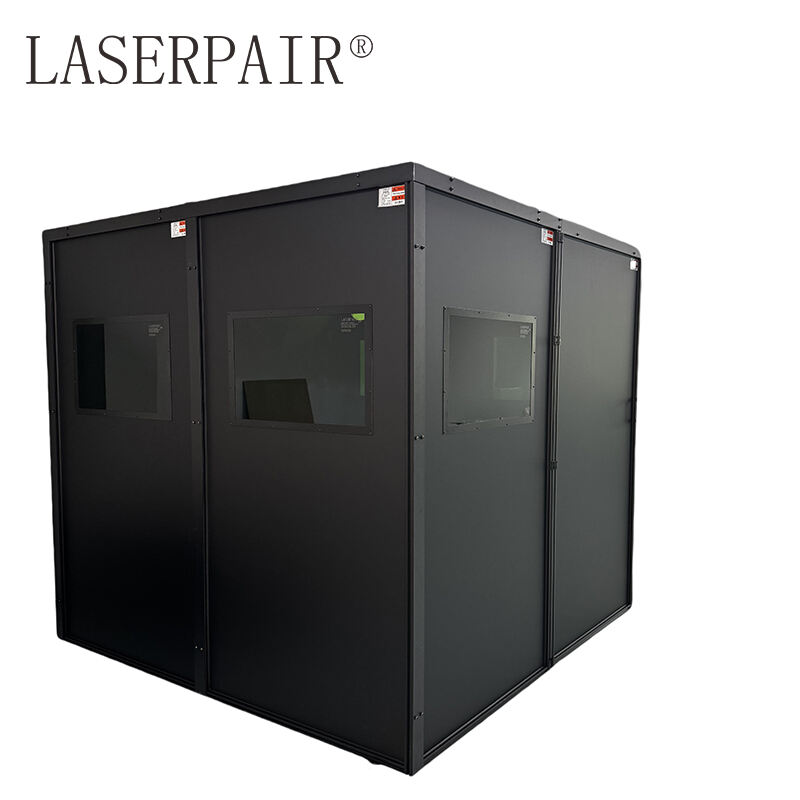

Customization Options for Laser Safety Houses

Engineering Controls and Safety Integration in Laser Safety Houses

Core Principles of Engineering Controls for Laser Safety

Safety houses for lasers focus on reducing risks at their source by following three main engineering approaches: automatically handling hazards, containing the beam paths, and building redundant systems. When beam enclosures are properly installed, they transform dangerous Class 4 laser systems into safe Class 1 environments while everything runs normally, which means we don't have to depend so much on paper rules and procedures. Take a look at the latest ANSI Z136.1 standards from 2023, they show something pretty impressive actually – facilities saw around 92% fewer exposure problems after switching from old manual safety checks to these interlocked enclosure systems. The real value comes from these built-in safety features that keep things compliant even when people make mistakes or forget steps in the process.

Beam Enclosures, Interlocks, and Automated Shutdown Systems

Modern laser safety housings combine five-layer beam traps with wavelength-specific optical filters to block 99.97% of stray radiation (IEC 60825-4 certified). Key features include:

• Smart Interlocks: Disrupt power supplies within 0.8 seconds of unauthorized access
• Multi-stage beam dumps: Reduce residual energy below 5 μJ/cm²
• Auto-calibrating shutters: Maintain alignment tolerances ‰¤0.1°

Recent implementations in industrial laser facilities demonstrate that dual-interlock designs reduce maintenance-related exposures by 78% compared to single-interlock systems (Laser Safety Journal 2024).

Real-Time Monitoring and Alignment with Laser Controlled Area (LCA) Design

Continuous alignment verification systems in LCAs prevent beam path deviations using:

• 360° LiDAR mapping updated at 60Hz
• IR thermal sensors detecting enclosure breaches
• Particulate monitors tracking airborne contaminants

A 2022 study showed facilities using real-time LCA monitoring reduced beam misalignment incidents by 62% while cutting ventilation energy costs by 31% through adaptive airflow control.

Case Study: Reducing Exposure Risks in Class 4 Laser Environments

A 2023 implementation at an automotive manufacturing plant achieved zero exposure incidents through three innovations:

1. Cross-polarized viewing windows blocking 1064nm wavelengths
2. Triple-redundant interlock circuits with <0.1% failure rate
3. AI-powered predictive maintenance scheduling

The system reduced safety inspection frequency by 83% while maintaining full compliance with IEC 60825-1 and OSHA 1926.54 standards.

Design and Prototyping of Custom Laser Safety Houses

Application-Specific Customization and Modular Design Principles

Custom laser safety houses prioritize application-specific adaptability, with 83% of industrial laser accidents traced to mismatched enclosure designs (LIA 2023). Modular systems allow reconfiguration for medical cleanrooms, aerospace welding chambers, or semiconductor fabrication  all while maintaining Class 1 safety standards. Key principles include:

• Scalable shielding layers (5-20 mm polycarbonate/glass hybrids)
• Field-replaceable beam traps and sensor arrays
• Standardized ports for robotics integration

Rapid Prototyping and 3D Modeling for Class 1 Laser Enclosures

Advanced CAD tools enable 72-hour prototype cycles for laser safety houses, compared to traditional 6-week workflows. Critical applications include:

• Wavelength-specific filter placement simulations
• Collision detection for robotic laser cutters
• Optical path validation through enclosure walls

Digital Twin Simulations in Laser Safety Enclosure Development

Virtual testing environments reduce physical prototyping costs by 41% while validating:

• Beam scatter patterns at 1,064 nm vs. 10.6 μm wavelengths
• Emergency shutdown sequences under mirror misalignment
• Heat dissipation rates for 6 kW fiber laser operations

Iterative Testing Strategies for Optimal Enclosure Performance

A 5-phase validation protocol ensures compliance:

1. Baseline safety check: ANSI Z136.1 interlocks
2. Simulated failure testing (e.g., forced ventilation shutdown)
3. Optical density verification across 180-10,600 nm range
4. Ergonomic access validation per ISO 13857
5. Full-system burn-in under peak power conditions

This approach reduces post-deployment design changes by 67% compared to single-phase testing models.

Fabrication, Materials, and Performance Validation

Material Selection Standards for Durable and Safe Laser Enclosures

Safety enclosures for lasers need materials that can handle intense radiation without losing their structural strength. Standards such as ISO 11553-1 from 2022 along with ANSI Z136.1 basically dictate what gets chosen for these applications. The main options include optical grade polycarbonate, various aluminum alloys, and those special composite materials that absorb laser beams. Some manufacturers have started using acrylic glass hybrids which cut down on unwanted reflections by around 60 percent when compared to regular barrier materials according to research published by ILSC back in 2023. For suppliers looking to meet specifications, they'll need to prove their materials hold up under tension at least 75 megapascals and remain stable even when temperatures reach 120 degrees Celsius. This usually involves running accelerated aging tests over approximately five thousand operating hours to simulate real world conditions.

Testing Interlocks, Safety Switches, and Emergency Stop Mechanisms

Safety systems in laser enclosures undergo rigorous validation aligned with IEC 60825-4 protocols. Key procedures include:

• Cyclic interlock testing: Simulating 10,000+ access cycles to verify fail-safe engagement
• Failure mode analysis: Introducing power fluctuations or component faults to trigger emergency shutdowns within <50 ms
• Beam path validation: Ensuring shutters block 99.9% of 10.6 μm wavelength CO‚‚ laser emissions

A 2023 safety validation study found enclosures with redundant infrared sensors reduced false triggers by 82% in high-vibration environments.

Balancing Cost Efficiency with Regulatory Compliance in Fabrication

When looking at laser safety housing options, it really pays off to consider the whole picture when comparing materials that meet standards against the risks of retrofitting old systems. Take aluminum enclosures for instance they might save around 40% upfront compared to those fancy titanium hybrids, but they don't last nearly as long. The Laser Systems Journal from 2024 points out that these cheaper alternatives actually end up costing twice as much over time because they need replacing so frequently. Facilities have found something interesting though modular designs that carry the 21 CFR 1040.10 certification cut down on those expensive recertification fees by almost two thirds compared to traditional welded units. And according to OSHA's findings in 2023, companies working with ISO certified suppliers see a dramatic drop in downtime caused by incidents, cutting it down by about three quarters without breaking the bank on compliance requirements either.

Enhanced Safety Features: Ventilation, Shielding, and Acoustic Sensors

Advanced Shielding and Ventilation Systems for Air Quality Control

Laser safety enclosures today often feature ventilation systems that mix HEPA filters with automatic airflow controls to get rid of harmful stuff like those pesky laser generated airborne contaminants (LGACs). The shielding is typically made from high quality aluminum with 6mm borosilicate glass panels that block about 99.9% of the 1064nm wavelength light while still letting operators see what's going on inside. According to recent studies from the industry sector last year, adding humidity sensors along with variable speed fans cuts down on particulates by around 80% when compared to older passive ventilation setups used in Class 4 laser operations. This makes a big difference in keeping both equipment and personnel safe during operation.

Integration of Emergency Stops and Acoustic Detection in Laser Engraver Safety

Three-layer safety protocols now standardize:

• Acoustic sensors detecting irregular equipment vibrations (threshold: 85 dB)
• Dual-action emergency stops with <0.2s activation latency
• Interlocked beam paths verified through real-time monitoring systems
  This configuration reduced false triggers by 47% in FDA-compliance trials while maintaining ANSI Z136.1 response requirements.

Case Study: Upgrading Ventilation in Industrial Laser Safety Houses

A semiconductor manufacturer eliminated 93% of nitrogen dioxide emissions by retrofitting their 40kW fiber laser enclosure with:

1. Multi-stage activated carbon filters
2. Pressure-regulated intake ports
3. Thermal-optimized airflow ducts
   Post-installation OSHA evaluations showed sustained airborne contaminant levels below 2 ppm - a 78% improvement over previous designs.

Compliance with Laser Safety Regulations and Certification Processes

Understanding IEC 60825 and OSHA Requirements for Laser Safety Houses

Laser safety facilities need to follow the IEC 60825-1 guidelines for optical radiation safety plus meet OSHA's 29 CFR 1910.132 rules about personal protective equipment. According to the IEC standard, lasers get classified into four different risk categories from 1 to 4, and each classification comes with specific engineering controls such as beam enclosures. Meanwhile, OSHA requires written safety procedures for anyone working around Class 3B or 4 laser systems. When companies implement both these standards together, they tend to do much better during safety inspections. This dual approach helps explain why many modern laser operations across the globe have seen fewer incidents and smoother regulatory reviews in recent years.

Ensuring Custom Enclosures Meet Global Laser Safety Standards

To meet global compliance standards, manufacturers need to get their products certified according to regional requirements such as the EU's CE Marking (EN 60825-1) and the ISO 11553-2 standard for machine safety. When it comes to third party testing, there are basically five key things they check. First is optical density which needs to be at least OD 7+ at 1064nm wavelength. Then there's how well the equipment holds up after being used for long periods. The interlocks must work reliably through over 10 thousand cycles. Emergency stops have to respond within half a second maximum. And finally, warnings signs should still be visible from three meters away. Companies that build machines with modular components actually save money on getting them recertified when entering new markets. Some industry reports suggest these savings can range between 18% to 22%, which makes a big difference when scaling operations internationally.

Documentation and Certification Strategy for Class 1 Laser Products

Getting Class 1 certification means putting together all sorts of paperwork like risk assessments according to ISO 12100 standards, plus getting those third party test reports in order and keeping track of when safety components get replaced. The regulatory folks want to see these technical files showing compliance at every stage from design through production. For medical devices, this includes submitting FDA 510(k) forms while industrial equipment needs to pass ANSI Z136.1 checks during audits. Companies switching to digital record keeping have found their approval process goes much faster too. Some manufacturers report saving anywhere between 30 to almost two months on average compared to old fashioned paper trails.

Frequently Asked Questions

• What are engineering controls in laser safety?

Engineering controls are systems and processes designed to minimize risks and hazards associated with laser operations. They include automatic hazard management, beam containment, and redundant systems that help ensure safety even when procedural steps are overlooked.

• How effective are modern laser safety houses?

Modern laser safety houses can transform high-risk Class 4 laser systems into Class 1 environments, reducing exposure issues by up to 92% with integrated safety features.

• What materials are used for laser safety enclosures?

Laser safety enclosures typically use optical grade polycarbonate, aluminum alloys, and composite materials that absorb laser beams, designed to withstand intense radiation and rigorous safety standards.

• How do facilities comply with laser safety regulations?

Compliance with laser safety regulations typically involves adhering to IEC 60825 and OSHA standards, incorporating engineering controls, maintaining written safety procedures, and undergoing regular inspections and certifications.

• What benefits do modular designs offer for laser safety housing?

Modular designs offer adaptability for different applications, cost savings on recertification, and reduced downtime from incidents, making them ideal for diverse industrial uses.
