Key Factors for Eye Protection Against Green Lasers

The significance of the 510-532 nm wavelength range in green lasers

This narrow band accounts for 68% of commercial green lasers (Laser Institute of America, 2023). Its popularity stems from optimal photon energy levels for precision tasks like fluorescence microscopy and holography, where beam clarity matters.

Why green laser wavelengths fall within the retinal hazard zone (400-1400 nm)

Green light penetrates deeper into ocular tissue than other visible wavelengths. As noted in the 2023 Ophthalmology Research Report, the human eye focuses 532 nm light to a retinal spot 20% smaller than red wavelengths, concentrating energy dangerously.

Wavelength-specific eye damage mechanisms from green laser exposure

Green lasers trigger multi-mechanism injuries, with thermal effects causing irreversible vision loss in <0.25 seconds at 5 mW/cm² (ANSI Z136.1-2022).

Comparative risks: green vs. UV and IR lasers in ocular injury potential

UV lasers tend to hurt the cornea mostly, while infrared ones go after the lenses. Green lasers are different though they actually threaten the retina in ways that aren't quite so obvious. The thing is, because we can see green light, our natural blinking reflex doesn't kick in fast enough (it takes around 150 milliseconds or so). That makes accidents much more likely when working with powerful Class 3B or 4 lasers. And here's something really interesting about retinal damage from these 532 nm green lasers they need just one thousandth of the energy compared to CO2 lasers to do similar damage. Pretty shocking when you think about it.

Optical Density (OD) Requirements for Effective Eye Protection at 532 nm

How optical density (OD) determines filter effectiveness for 532 nm lasers

Optical density or OD measures how well a filter blocks laser light, where each number means the transmitted energy drops by ten times. Take green lasers at 532 nm for instance. An OD rating of 6 cuts down the light to just 0.0001% of what originally passes through. That matters a lot because these wavelengths land right in the danger area for eyes (between 400 and 1400 nm). According to latest findings from the 2024 Laser Safety Report, most safety standards demand at least OD 4 protection when working with Class 3B or 4 green lasers commonly found in labs and factories across various industries.

Calculating minimum OD levels based on laser power and exposure duration

Required OD = log⁡(Power Density / Maximum Permissible Exposure). For a 1W 532nm laser with 0.25s exposure, OD 4 reduces transmitted energy to 0.1mW–safely below the 1.6mW/cm² MPE limit (ANSI Z136.1-2022). Pulsed lasers require additional calculations for peak power and pulse duration, particularly in nanosecond-range applications like lidar.

Industry standards for OD ratings in laser safety eyewear (LSE)

Current standards mandate wavelength-specific OD testing under worst-case scenarios. EN 207-certified eyewear must withstand 10s exposure to 50kJ/m² at 532nm, while ANSI Z136-compliant filters undergo rigorous angular dependency and damage threshold testing. These protocols ensure consistent protection across varying beam intensities and incident angles.

Balancing protection and usability: avoiding over-specification or under-protection in OD selection

Excessive OD (>7) unnecessarily reduces visible light transmission, creating workplace hazards. Recent advancements in dielectric coating technology enable OD 5 at 532nm with 45% VLT (Visible Light Transmission)–optimized for both safety and operational efficiency in precision laser alignment tasks.

Selecting Wavelength-Specific Laser Safety Eyewear for Green Laser Applications

Importance of Precise Matching Between Laser Output and Filter Transmission

To protect eyes from those pesky 532 nm green lasers, the eyewear needs to match up pretty closely with what the laser is actually putting out. Research published last year showed something interesting - if there's even a tiny mismatch in wavelength, like just plus or minus 5 nanometers, it can really cut down on how well the protective gear works. We're talking about a drop of anywhere between 60 to 80 percent in optical density performance. Getting this right matters because otherwise some laser light might still get through to the back of the eye, which defeats the whole purpose of wearing protective glasses in the first place. Safety experts stress this point constantly when training workers who handle these kinds of lasers regularly.

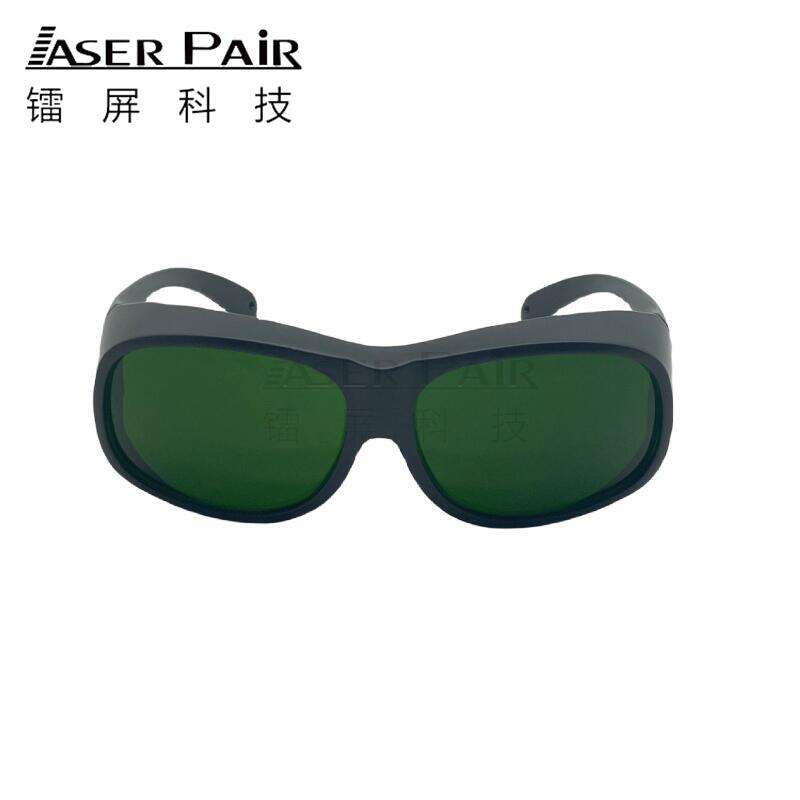

Common Materials Used in 532 nm Laser Safety Glasses

Polycarbonate lenses dominate industrial settings due to lightweight durability and 100% UV absorption, while coated glass variants remain preferred for high-power (>1W) medical lasers. Key material properties include:

Limitations of Broadband Filters in Protecting Against Green Laser Exposure

Broadband filters marketed as "multi-wavelength" solutions often fail at 532 nm, attenuating only 50–70% of green laser energy compared to 99.9999% with specialized filters (OD 6+ requirement). This deficiency arises from their broad absorption curves prioritizing IR/UV protection over visible spectrum hazards.

ANSI Z136.1 and EN 207 Compliance in Green Laser Protection Products

Certified eyewear must meet ANSI Z136.1 (minimum OD 5 for Class 3B/4 lasers) and EN 207’s direct beam exposure tests. Non-compliant products increase retinal thermal injury risks by 4.3× according to photobiological simulations.

Case Study: LSE Failure Due to Incorrect Wavelength Rating

A medical laser lab experienced three ocular injuries in 2023 when personnel used eyewear rated for 1064 nm (IR) instead of 532 nm (green). The mismatched filters allowed 90% transmission of the 3W laser beam during alignment procedures.

Risk Factors Influencing Laser-Induced Eye Injury from Green Lasers

Exposure duration, beam divergence, and power density as key risk variables

Spending too much time looking at green lasers can really harm the eyes, causing serious heat damage to the retina. Research has found that even brief exposure matters a lot - some tests show permanent eye damage happening within just quarter of a second when dealing with Class 4 laser beams. How spread out the laser beam gets makes all the difference for safety areas. Just increasing divergence by 1 milliradian can make the dangerous zone around four times bigger in factories and workshops. The power level is super important too. When a 532 nm green laser focuses on one spot, it can blast the eye with over 50 million watts per square meter. That's way beyond what safety standards allow according to ANSI Z136.1 guidelines, actually hitting those limits about a thousand times over.

Human factors: blink reflex limitations and accidental intra-beam viewing

The human blink reflex (average 150–250 ms) offers inadequate protection against pulsed green lasers emitting nanosecond-duration pulses. Recent findings indicate 38% of laboratory accidents occur during alignment procedures when operators temporarily disable engineering controls for better visibility.

Environmental contributors: reflective surfaces and alignment procedures

Specular reflections from polished equipment surfaces retain 90% of original beam energy, creating secondary hazard vectors often overlooked in safety protocols. A 2023 analysis of 120 industrial incidents revealed 62% involved reflected beams from stainless-steel surfaces. Proper alignment practices reduce risks–implementing beam attenuation tools during setup decreases accidental exposure likelihood by 73%.

Trend: Rising incidents in educational and industrial settings with Class 3B/4 lasers

According to the FDA, there has been a staggering 210% rise in green laser eye injuries since 2019. This spike seems to line up with how much more people are using those powerful 532 nm DPSS lasers these days, especially in things like 3D printing and spectroscopy work. Looking at where these accidents happen, academic labs are responsible for about 41% of all reported cases lately. A lot of times this comes down to picking the wrong optical density rating when working with those frequency doubled Nd:YAG systems. The numbers get even more concerning when we look at industrial settings versus hospitals. Factories and manufacturing plants report almost 58% more incidents than medical facilities do, probably because they're dealing with stronger beams and far more complicated optical arrangements on a daily basis.

Best Practices for Implementing Eye Protection Programs in Green Laser Workplaces

Developing protocols for laser eye protection selection and usage verification

Effective eye protection programs begin with documented protocols for selecting laser safety eyewear that specifically address:

• Wavelength alignment (510–532 nm for green lasers)
• Minimum optical density requirements based on power output
• Regular inspection schedules for damaged filters
• Usage logs confirming proper wear during operations

Peer-reviewed research demonstrates that standardized protocols reduce improper eyewear use by 62% in industrial settings (Laser Safety Institute 2022).

Training personnel on the limits of protective eyewear and administrative controls

Comprehensive training must emphasize that eyewear alone doesn't guarantee safety. Key curriculum components include:

• Maximum permissible exposure limits for 532 nm wavelengths
• Administrative controls like restricted access zones
• Emergency response procedures for accidental exposure

Studies show facilities implementing quarterly safety drills achieve 95% faster incident response times compared to annual training models (Miller et al. 2017).

Strategy: Integrating engineering controls with PPE for comprehensive safety

A layered protection approach combines:

This hierarchy ensures multiple failure points must occur before retinal exposure risks materialize.

Evaluating fit, comfort, and peripheral coverage in practical use scenarios

Field testing reveals three critical comfort factors impacting compliance:

1. Weight distribution – Glasses exceeding 45g cause neck strain during 4+ hour shifts
2. Peripheral seal – Gaps >2mm allow reflected beams to bypass filters
3. Anti-fog performance – 78% of users report compromised vision from lens fogging (Occupational Optics Journal 2023)

Regular fit testing with actual users identifies adjustments needed to maintain both safety and wearer compliance.

FAQ

What makes the 510-532 nm wavelength range significant for green lasers?

This range is significant due to its optimal photon energy levels for precision tasks, making it highly prevalent in commercial green lasers and useful in applications like fluorescence microscopy and holography.

Why are green lasers considered hazardous for the retina?

Green lasers penetrate deeper into ocular tissues and focus energy more densely on the retina, making them a higher risk for retinal injuries compared to other visible wavelengths.

What is Optical Density (OD) in laser protection, and why is it important?

OD measures how effectively a filter blocks laser light. Higher OD ratings mean less laser light is transmitted, which is crucial to protect eyes from the hazardous range of green lasers.

Why is precise wavelength matching important in laser safety eyewear?

Even slight mismatches in wavelength can drastically reduce the protective performance of laser eyewear, allowing harmful laser light to reach the eyes.

What types of materials are used in 532 nm laser safety glasses?

Common materials include polycarbonate for lightweight durability and coated glass for high-power laser applications, both engineered to provide adequate optical density at that wavelength.
