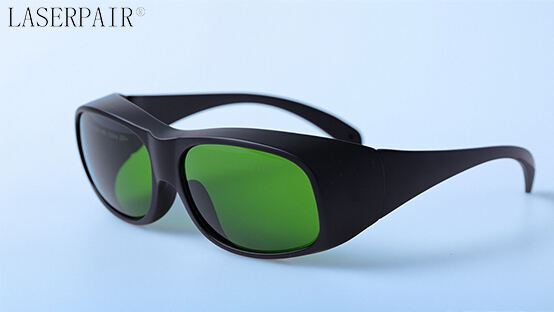

What Optical Density (OD) Means for Laser Safety Glasses

Understanding Optical Density (OD): Definition and Core Principles

Definition of Optical Density (OD) and How It's Calculated

Optical Density, or OD, basically tells us how well a material blocks laser light. The math behind it goes something like this: OD equals negative log base 10 of T, with T being the amount of light that actually makes it through the material. Take safety glasses rated at OD 5 as an example. These will let just 0.001% of the incoming light pass through, which cuts down on harmful exposure by around 100,000 times. Because the scale works logarithmically, every step up in OD number means ten times less light gets through. So when comparing OD ratings, say between OD 3 and OD 6, the difference isn't just three steps higher—it's actually 1,000 times better protection. That's why knowing the OD rating matters so much when picking out proper eye protection against lasers, since even small differences can mean the difference between safe viewing and serious risk of eye damage.

Transmittance vs. OD: How They Relate to Laser Attenuation

Transmittance basically tells us what percent of light gets through a lens, like when we see something like 10% (T equals 0.1). Optical density or OD takes this number and turns it into something easier to understand for safety purposes. Take OD 3 for example, which blocks out about 99.9% of the light. That works fine for those little laser pointers used in labs and research settings. But when dealing with bigger stuff, anything over 1 watt power needs at least OD 5 or better. Check out the table here to get a clearer picture of how different OD values relate to actual protection levels against various laser intensities.

This relationship underscores why OD is preferred in safety planning: it simplifies risk assessment across diverse laser classes.

Interpreting OD Values: What Each Level of Protection Blocks

What OD rating someone needs really comes down to three main factors: how powerful the laser is, what wavelength it operates at, and the specific job being done. For most everyday visible lasers between 450 and 700 nanometers, OD ratings around 3 to 4 usually work fine. But when dealing with those intense infrared medical lasers, something with at least OD 5 becomes essential. Research published last year made an important point about this whole OD business – these ratings don't actually translate across different wavelengths. Take a filter labeled OD 7 for 1064 nm light? It might barely hit OD 1 when exposed to 532 nm instead. That's why it pays to double check whether the safety glasses claim their OD numbers match precisely with whatever laser system will be used. Getting this right makes all the difference in staying protected properly.

How Optical Density Determines Laser Protection Performance

The Role of OD in Reducing Laser Exposure to Safe Levels

The optical density basically tells us how much laser light actually makes it to our eyes. The formula goes something like this: OD equals the log base 10 of incident power divided by transmitted power. When someone wears eyewear rated at OD 5, they're cutting down on laser energy by about 100,000 times (that's 99.999% blocked). This brings those dangerous laser beams down to levels that won't hurt anyone. Take OD 4 glasses for instance these will stop around 99.99% of green laser light at 532 nanometers. That matters a lot when dealing with industrial lasers over 10 watts in power. Since optical density works on a logarithmic scale, bumping up just one number can make all the difference in protection levels. A jump from OD 3 to OD 4 isn't just minor improvement it's actually life saving in many situations.

OD Requirements by Laser Type, Power, and Application

Different lasers demand specific OD levels based on their output characteristics. Key thresholds include:

These requirements align with ANSI Z136.1-2014 guidelines, though recent findings indicate that pulsed lasers often require an additional +1 OD compared to continuous-wave systems due to peak power spikes, as noted in a 2023 ANSI compliance report.

Real-World Limitations: Can OD Be Overestimated?

Optical density ratings get measured in labs where everything's perfectly controlled, but things change when these lenses actually see real world action. Angular exposure becomes a problem, especially when light hits at angles over 30 degrees, plus scratches accumulate and UV damage builds up over time. According to EN 207 standards, polycarbonate lenses tend to drop around half an OD unit after just two years exposed to UV lasers. Field checks in 2022 found something pretty concerning too: nearly one out of every six pairs labeled as OD 6+ didn't pass muster because their wavelength protection wasn't matching what was claimed. That's why folks working with laser equipment need to check their safety glasses regularly and follow manufacturer guidelines for proper care and replacement schedules.

Wavelength Dependence of OD and Its Impact on Safety

Why OD Is Wavelength-Specific in Laser Safety Glasses

The optical density changes depending on the wavelength since different filter materials like dyes, dielectric coatings, or polycarbonate tend to absorb or reflect certain parts of the light spectrum more than others. For instance, a particular lens could provide an OD rating above 7 in the range of 1000 to 1550 nanometers, yet drop down to just around OD 4 when looking at wavelengths from 1550 to 2750 nm. This happens because how well these materials work depends on how photons interact with their molecular makeup at various energy levels. Research has found that even filters designed specifically for the 950 to 1000 nm range sometimes let through harmful amounts of light at 940 nm. That's why getting the exact spectral match right matters so much in practical applications.

Matching OD Ratings to Laser Wavelengths for Effective Protection

Getting proper eye protection really depends on matching up the laser's wavelength with what the safety glasses are rated for. Take a 1064 nm Nd:YAG laser putting out around 10 W per square centimeter. To bring that down to safe levels below 0.0001 W/cm² which is under the Maximum Permissible Exposure limit, we need at least OD 5 protection. That's why manufacturers put labels like "OD7 @ 800-1100 nm" on their products showing how well they block different parts of the spectrum. When working with multiple lasers at once, say one operating at 940 nm and another at 450 nm, special glasses rated for both wavelengths become necessary. These dual certified or broadband filtered options do the job but come with tradeoffs. Higher OD ratings mean less light gets through, so visibility drops and colors might look washed out compared to regular safety glasses.

Risks of Mismatched Wavelength and OD in Practical Use

When people wear protective eyewear outside what it was designed for, they're basically getting almost no protection at all sometimes. According to research from last year, when the optical density doesn't match up with the right wavelengths, there's actually around twelve times more light passing through than what should be happening. That kind of gap puts eyes at serious risk of damage really quickly. We've seen cases where workers tried using safety glasses rated for 770-810 nm with an 808 nm laser diode. The protection level plummeted from OD5 down to just OD3 once they moved even slightly beyond that sweet spot range. Standards organizations have caught onto this problem too. Things like the ANSI Z136.1 guidelines now require proper testing across specific wavelengths so manufacturers can't get away with vague claims anymore.

How to Select Laser Safety Glasses Based on OD and Wavelength

Step-by-Step Guide to Choosing Eyewear Using Laser Parameters

To get started, figure out what wavelength your laser operates at (measured in nanometers) along with its maximum power output. Next step involves calculating the optical density needed with this formula: OD equals the base ten logarithm of P zero divided by PEL. Here's what those letters mean - P zero represents the incoming power density while PEL stands for Maximum Permissible Exposure limit. Let's take a real world case as illustration. If we have a 5 watt laser operating at 1064 nanometers and our safety threshold is set at 1 milliwatt per square centimeter, then we need an OD rating of at least 7 or higher. This table below should help make things clearer for various situations that professionals encounter regularly in their work environments.

Ensure selected eyewear complies with ANSI Z136.1 standards and accounts for pulse duration and beam diameter, which affect energy density. Cross-referencing specifications with trusted sources helps avoid under-protection.

Balancing OD, Visibility, and Comfort in Real-World Applications

Lenses with high optical density definitely offer better eye protection, though they come at a cost. These lenses can cut down on visible light transmission by almost 90 percent, which makes them pretty tough on the eyes when doing detailed work such as aligning optics. For those working with infrared lasers, especially around the 1550 nm wavelength range, amber tinted glasses might be worth looking at. They typically hit OD ratings above 6 while still letting through about a quarter of normal light. This helps keep things visible enough without sacrificing all that protection. Industrial workers will appreciate wraparound styles that have anti fog treatments too. Such designs not only make wearing time more comfortable but also help spot hazards from the sides, something really important in busy factories where safety cannot be compromised even for a moment.

Common Selection Mistakes and How to Avoid Them

1. Wavelength mismatches: Accounting for 32% of reported laser injuries (Journal of Occupational Safety, 2022), these occur when eyewear is used beyond its tested range.
2. Ignoring multiple wavelengths: Dental and aesthetic lasers often emit at several wavelengths (e.g., 940 nm and 450 nm); always select dual-certified protection.
3. Prioritizing cost over compliance: Low-cost polycarbonate models may lack verified OD ratings at key wavelengths like 10.6 μm, posing serious risks in CO₂ laser environments.

Industry Standards and Compliance for OD Ratings in Laser Safety Glasses

ANSI Z136.1 and the Role of OD in Safety Certification

ANSI Z136.1 serves as the main guideline for laser safety across North America, setting out how to calculate necessary optical density based on what's called Maximum Permissible Exposure or MPE limits. The calculation goes something like this: OD equals the base ten logarithm of incident power density divided by MPE. This math basically tells us if safety glasses will bring down laser beam strength enough to keep workers safe from harm. Independent labs run actual tests where they simulate real laser exposures to check if manufacturers' claims hold water. When products pass these tests, they get the Z87+ certification stamp, which is mandatory for anyone working with lasers in hospitals, factories, or research labs. Following the latest version of this standard, ANSI Z136.1-2022, gives organizations peace of mind knowing their equipment has been properly tested and documented, especially when dealing with potentially dangerous laser operations.

Global OD Labeling Practices and Regulatory Compliance

The rules governing eye protection equipment differ quite a bit around the world when it comes to how strict they are and what methods they use. Take Europe for instance, where the EN 207:2018 standard requires pretty intense testing that looks at specific wavelengths. This includes exposing materials to direct beams for full 10 seconds straight, which is much longer than what American standards typically demand. When someone buys certified safety glasses there, they'll notice two important numbers printed right next to the CE mark: one showing optical density (OD) and another indicating protection level. Things work differently across the pond though. The United States has its own set of guidelines called ANSI Z87.1-2025 marked with Z87+ labels. These focus more on how well materials resist damage from short bursts of laser light lasting anywhere between quarter of a second up to four whole seconds. There's definitely room for confusion here given all these variations in requirements depending on where you happen to be shopping for protective eyewear.

Manufacturers exporting globally must adapt labeling and testing accordingly. For example, eyewear compliant with EN 207:2018 requirements achieves OD 5 at 1064 nm but may not adequately protect against 532 nm systems prevalent in Asian clinics. Regular audits aligned with ISO 9001:2015 ensure consistent quality and regulatory adherence throughout production.

Frequently Asked Questions

What does OD stand for, and why is it important in laser protection?

OD stands for Optical Density, which measures a material's ability to block laser light. It's crucial in determining the level of protection against laser exposure.

How does OD relate to transmittance?

Transmittance measures the percentage of light passing through a material, while OD is a logarithmic measure used to simplify risk assessment in laser safety.

Why is wavelength specificity important for OD ratings?

The effectiveness of OD is wavelength-dependent due to the varying absorption and reflection properties of filter materials, making precise wavelength matching essential for eye safety.

What are common mistakes when choosing laser safety glasses?

Common mistakes include mismatching wavelengths, ignoring multiple wavelengths, and prioritizing cost over compliance, potentially leading to inadequate protection.

What standards govern OD ratings for laser safety glasses?

Standards like ANSI Z136.1 in North America and EN 207 in Europe dictate the regulations and testing procedures for OD ratings, ensuring the effectiveness of laser safety glasses.
